Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain

Name: Cyclone Cross Flow Door 1780mH 150W Commercial Air Curtain
Brand: NANYOO or OEM / ODM
Price: 1 USD

Buy cheap Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain product

Brand Name : NANYOO or OEM / ODM

Model Number : FM- 1209X

Certification : CE / CB / CCC

Place of Origin : China

MOQ : 1 unit

Price : Negotiated

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 10000 units per month

Delivery Time : 30-35 work days

Packaging Details : Carton With Foam Protection

Product name : Cross flow door air curtains

Fan Type : Cross Flow fan

Voltage : 110V / 220V , 50Hz / 60Hz

Material : Metal Casing

Color : Silver / White

Operation : Remote control and button control

Motor : Fine copper motor warranty for 5 years

Function : Adjustable air deflector / High efficient motor / Quiet wind wheel

Noise : 44db

Mounting : Ceiling Mount

Contact Now

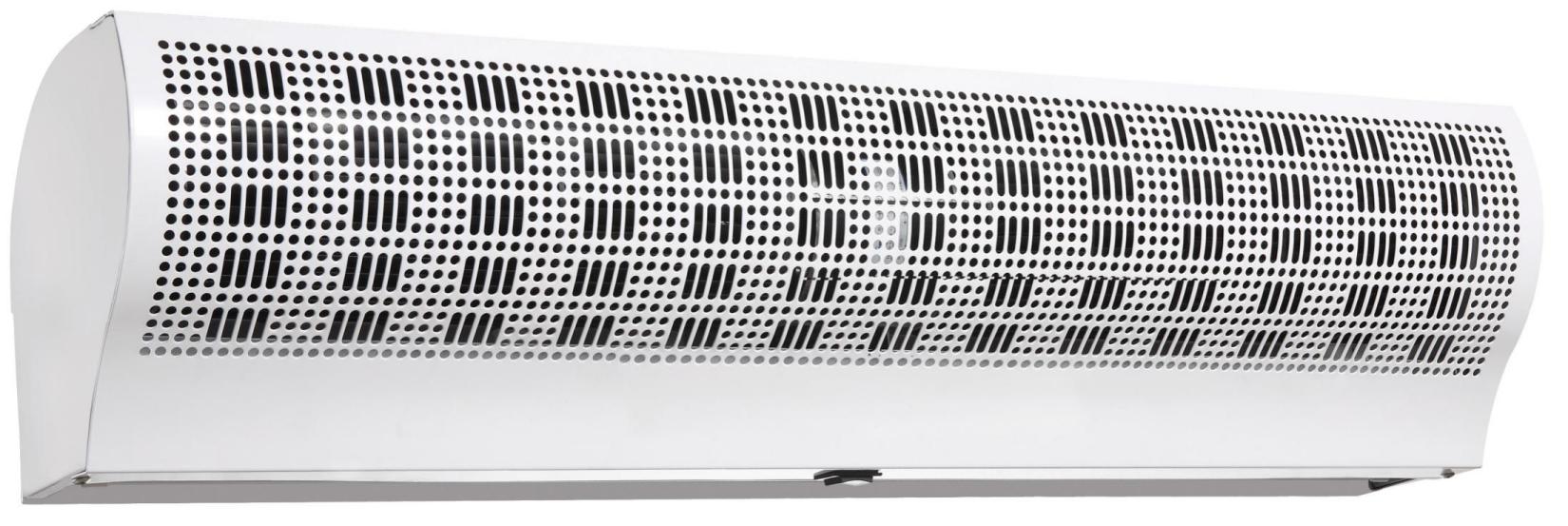

Cyclone Cross Flow Door Air Curtains / Commerial Air Curtain Easy Installation And Cleaning

Unique Arc Design And Slim Body

FEATURE

Slim all metal housing with esthetic curved design

Sturdy metal housing, smooth and bright apraying for a variety of applications

Metal casing with durable powder spray coating / Cross fan and wheel

Remote control and button control

Multiple width available 900 , 1000 , 1200 , 1500 , 1800 and 2000mm

Cross Flow Door Air Curtains Simple Design - Model X

SAVING 90% ENERGY , SAVING YOUR MONEY

SPECIFICATION

Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain

Voltage/Frequency:220-240V/50Hz, or 110V/60Hz, 110V/50Hz, 220V/60Hz are all available

Model	Diameter of Impeller	Input Power	Air Velocity	Air Volume	Noise	Net Weight	Gross Weight	Unit Size	Carton Size	Mounting Height
Model	(mm)	(W)	(m/s)	(m³/h)/CFM	(dB)	(KG)	(KG)	(mm)	(mm)	(m)
FM-1209X-2(Y)	120	150	11	1780/1047	≤43	11.5	13.0	900×215×200	960×270×250	2.3-3
FM-1210X-2(Y)	120	150	11	1980/1164	≤43	12.1	13.8	1000×215×200	1060×270×250	2.3-3
FM-1212X-2(Y)	120	180	11	2370/1394	≤44	14.5	16.5	1200×215×200	1260×270×250	2.3-3
FM-1215X-2(Y)	120	220	11	2970/1747	≤46	17.2	19.7	1500×215×200	1560×270×250	2.3-3
FM-1218X-2(Y)	120	280	11	3560/2094	≤50	20.0	23.0	1800×215×200	1860×270×250	2.3-3
FM-1220X-2(Y)	120	320	11	3960/2329	≤51	21.5	25.0	2000×215×200	2060×270×250	2.3-3

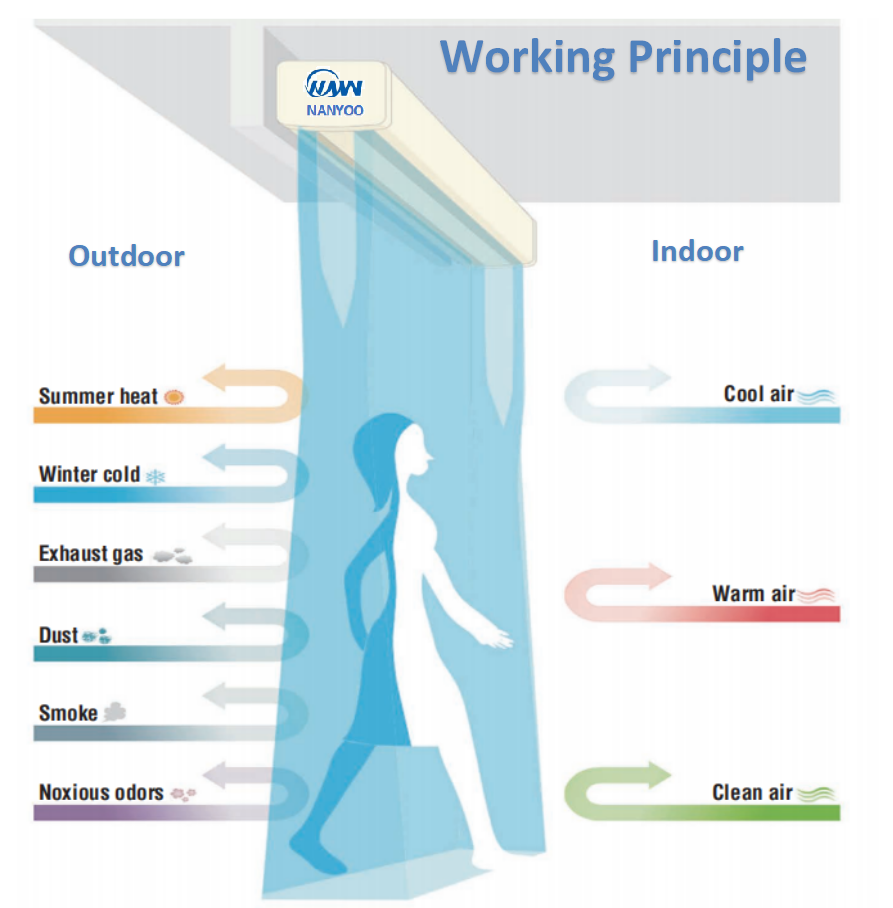

Working Principle Of Air Curtain

Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain

Use for Shopping mall / Hotel / Subway / Metro

Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain

FAQ

Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain

If you have any questions about our products

Please contact us and we will give you some satisfactory reply
